Struct-Fast® Product:


Hollo-Grate-Fast®

For securing open bar grating to HSS (Hollow Stuctural Steel)


Hollo-Grate-Fast

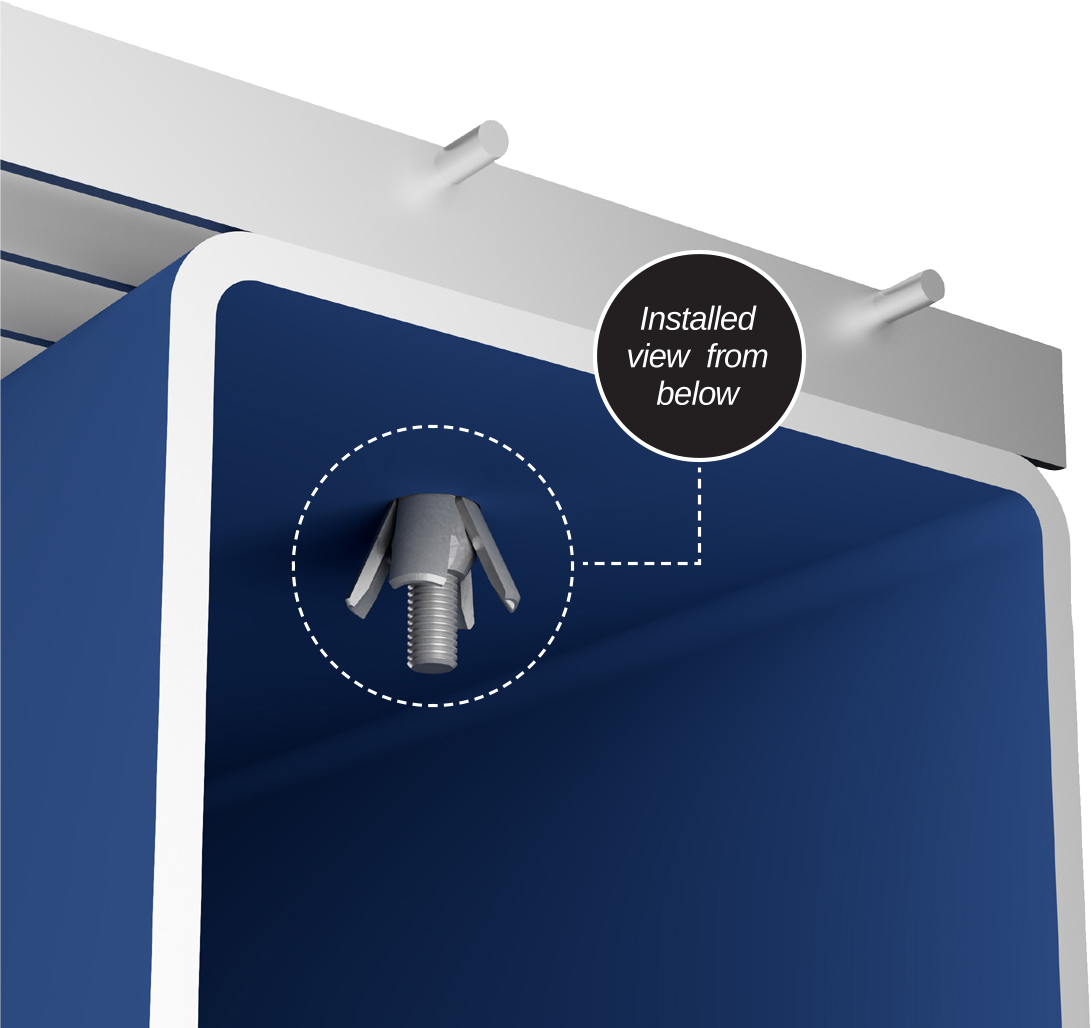

Hollo-Grate-Fast underside installation view

Hollo-Grate-Fast®

Leveraging the high strength of the legendary Hollo-Bolt and merging the ease and convenience of the Grate-Fast, Struct-Fast has developed the Hollo-Grate-Fast for quickly securing open bar grating to HSS (Hollow Structural Steel).

Developed specifically for the most common sized 19-W grating, our newest innovation allows grating to be connected to HSS without drilling, welding or powder actuated fastening in the field. Access to the underside of the grating or the inside of the HSS is not required, enabling contractors to easily install grating from above.

A fast installation is achieved by placing the Hollo-Grate-Fast over the bearing bars, inserting it into a pre-drilled hole in the HSS, and simply tightening the expansion bolt with a torque wrench. This cutting-edge fastener enables contractors to reduce construction time and labor costs, while maximizing safety and productivity.

Summary of Key Benefits

  • High strength connection for 19-W grating to HSS
  • Fast, one-sided, cost-effective installation
  • No hot work permits required
  • Hot-dip galvanized corrosion resistance
  • Easy to install from above with standard hand tools

HOLLO-GRATE-FAST® SPECIFICATIONS

  • Top Hat Bracket: Mild steel 2.5mm (equivalent to 12 gauge), hot-dip galvanized
  • Ferrule: Mild steel, hot-dip galvanized
  • Body: Mild steel, hot-dip galvanized
  • Cone: Mild steel, hot-dip galvanized
  • Capscrew: Mild steel grade 8.8, mechanical galvanized

QUICK AND EASY TO INSTALL

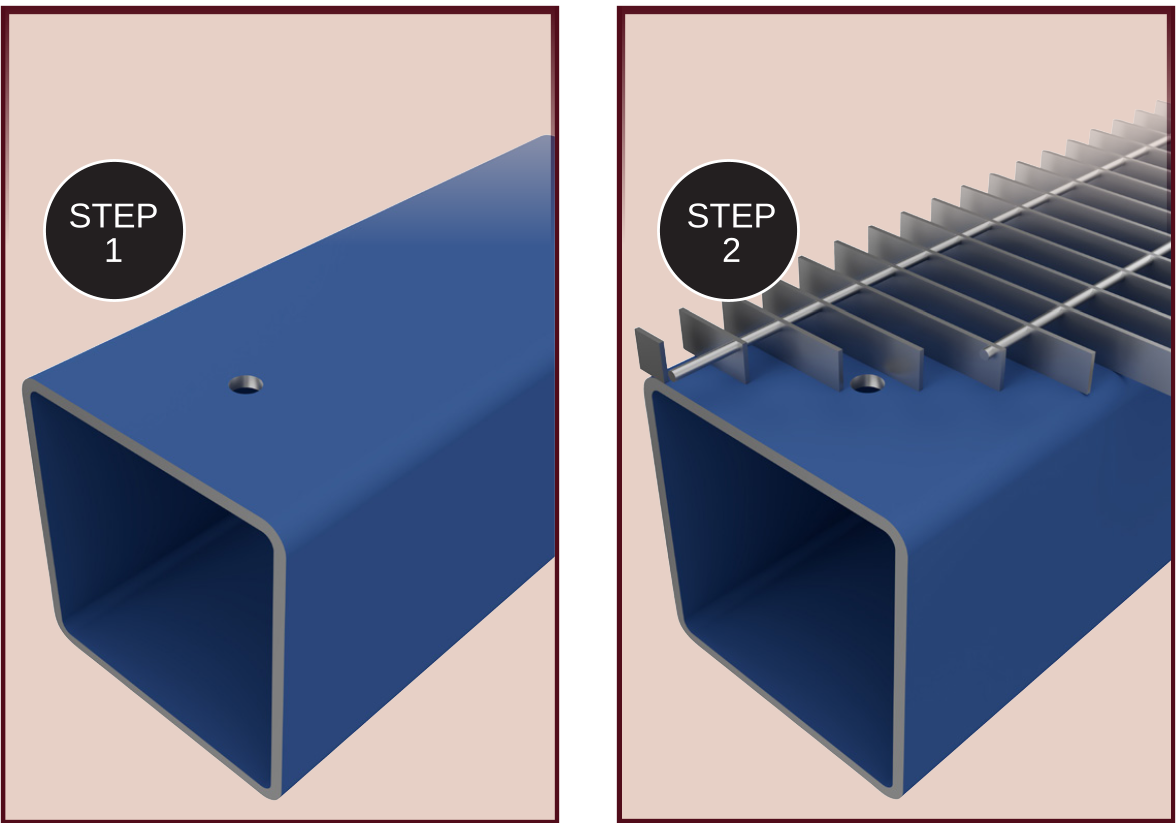

STEP 1: Ensure drilled hole is free from burrs. Coordinate hole location with bar grating spacing.


STEP 2: Position the grating onto the HSS so that the hole is centrally placed between two bars.

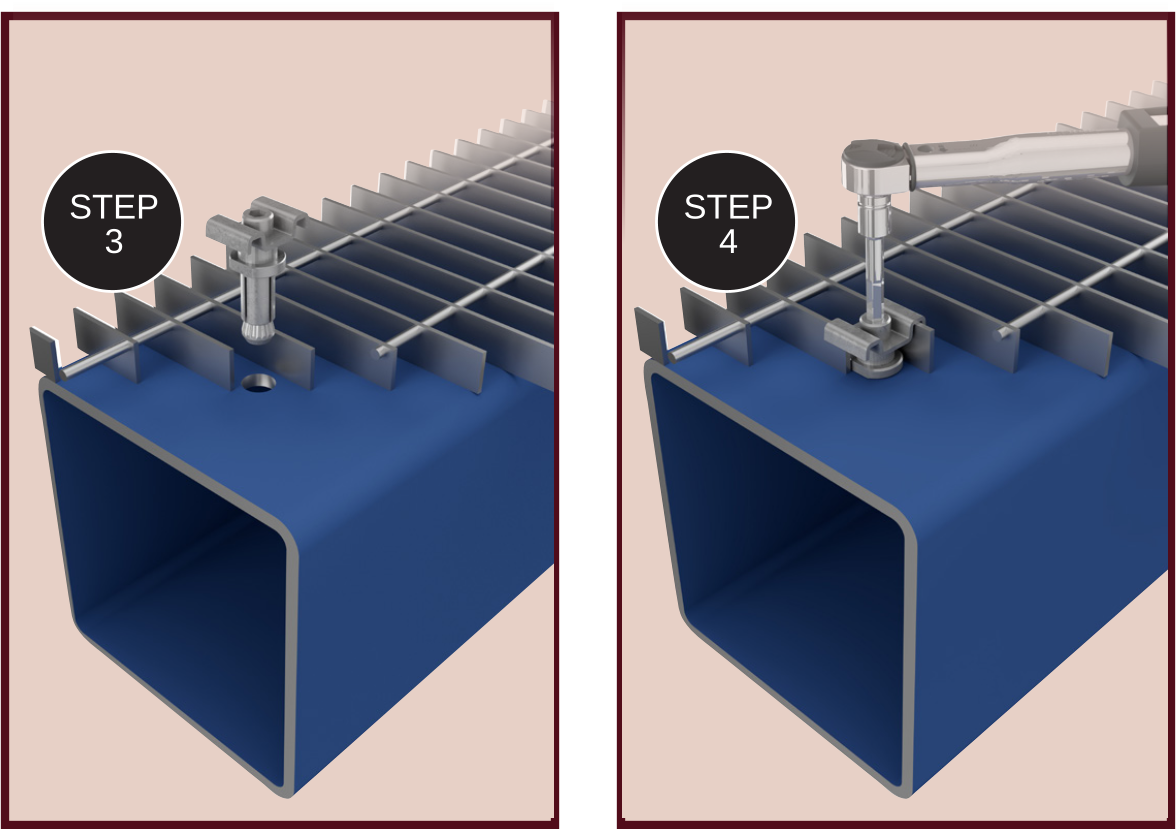

STEP 3: Insert the Hollo-Grate-Fast down onto the grating bars and through the hole.


STEP 4: Once the grating is in position, tighten the Hollo-Grate-Fast to the specified torque.

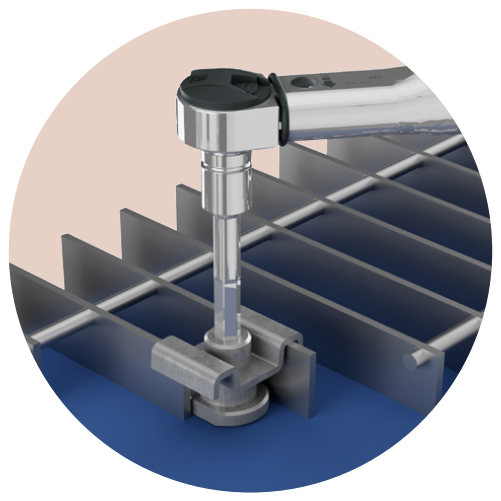

Close up of Hollo-Grate-Fast installation

REVOLUTIONIZING CONSTRUCTION

Maximize Efficiency

This engineered solution is typically
specified at the design phase to utilize pre-drilled steel and ensures optimum efficiency from detailing to construction.


Demand Safety
Permitted hot work and its inherent danger can be avoided while operations, construction and maintenance can continue on a jobsite.


Build Smarter
This revolutionary product is simply inserted into a pre-drilled hole and tightened to secure grating to HSS.


Build Faster
Hollo-Grate-Fast installs in seconds.


Lower Costs
Using the Hollo-Grate-Fast is more cost-effective than powder actuated fasteners, welding, labor and scaffolding requirements.


Rely On Us
Struct-Fast has proven its expertise at designing and manufacturing high quality, durable steel connections. The Hollo-Grate-Fast continues that legacy.


Superior Corrosion Resistance
Galvanized coating is standard on the Hollo-Grate-Fast maximizing corrosion resistance.

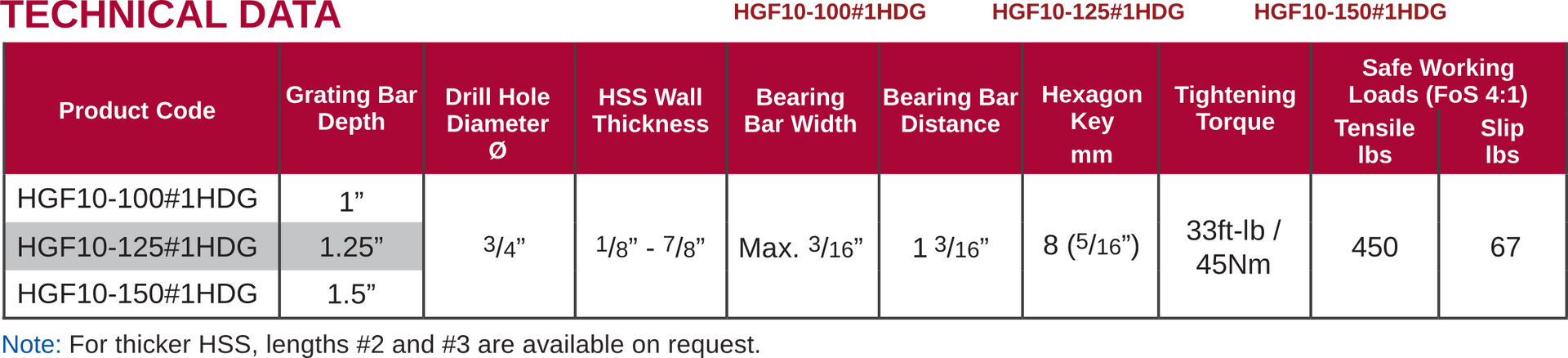

Hollo-Grate-Fast Technical Data
